Future Sky Equipment Agency of Contrinex in Dubai
Contact Us :
Wednesday, 23 December 2015
Contrinex inductive sensors
Robust and highly reliable, Contrinex inductive sensors are the
fit-and-forget choice for non-contact detection of metallic targets at
distances up to 40 mm. Vacuum-encapsulated electronics and metal
housings protect against shock, vibration, dust, dirt and moisture,
making inductive sensors ideal for highly demanding conditions. An
inductive sensor generates a magnetic field that is attenuated by a
metal target. As a sensor nears its target, a sensing circuit detects
the degree of attenuation and switches the output accordingly. Patented
Condist® oscillator circuitry allows best-in-class operating distances,
while all-metal construction – including the sensing face – is possible
with revolutionary Condet® technology. Designers everywhere specify
Contrinex inductive sensors as industrial limit switches and position
switches, as pulse-counting devices, or for distance and speed
measurement.
proximity sensor
A proximity sensor is a sensor able to detect the presence of nearby objects without any physical contact.
A proximity sensor often emits an electromagnetic field or a beam of electromagnetic radiation ( infrared, for instance), and looks for changes in the field or return signal. The object being sensed is often referred to as the proximity sensor's target. Different proximity sensor targets demand different sensors. For example, a capzcitive or photoelectric sensor might be suitable for a plastic target; an inductive proximity sensor always requires a metal target.
The maximum distance that this sensor can detect is defined "nominal range". Some sensors have adjustments of the nominal range or means to report a graduated detection distance.
Proximity sensors can have a high reliability and long functional life because of the absence of mechanical parts and lack of physical contact between sensor and the sensed object.
Proximity sensors are commonly used on smartphones to detect (and skip) accidental touchscreen taps when held to the ear during a call. They are also used in machine vibration monitoring to measure the variation in distance between a shaft and its support bearing. This is common in large steam turbines , compressors, and motors that use sleeve-type bearings.
Our Suggest for your Needs :
Contrinex
A proximity sensor often emits an electromagnetic field or a beam of electromagnetic radiation ( infrared, for instance), and looks for changes in the field or return signal. The object being sensed is often referred to as the proximity sensor's target. Different proximity sensor targets demand different sensors. For example, a capzcitive or photoelectric sensor might be suitable for a plastic target; an inductive proximity sensor always requires a metal target.
The maximum distance that this sensor can detect is defined "nominal range". Some sensors have adjustments of the nominal range or means to report a graduated detection distance.
Proximity sensors can have a high reliability and long functional life because of the absence of mechanical parts and lack of physical contact between sensor and the sensed object.
Proximity sensors are commonly used on smartphones to detect (and skip) accidental touchscreen taps when held to the ear during a call. They are also used in machine vibration monitoring to measure the variation in distance between a shaft and its support bearing. This is common in large steam turbines , compressors, and motors that use sleeve-type bearings.
Our Suggest for your Needs :
Contrinex
Future Sky Equipment agency of Contrinex in Dubai
Contact Us :
Datexel also manufactures ATEX IS certified head mount temperature transmitters. The ATEX IS certified head mount temperature transmitters also have options for isolation, PC programmable, direct or inverse output, up scale or down scale burn out.
The DAT1010 head mount temperature transmitters convert RTD's (Pt100, Pt1000, Ni100 and Ni1000), Resistance up to 2000 Ohms, Potentiometers up to 2 K Ohms and mV up to 700mV. The DAT1015, DAT1061 and DAT1066 also convert Thermocouples with full linearization. The standard output of these transmitters is 4-20mA and they have a large voltage tolerance of 10 to 32 Vdc. The DAT1061 and DAT1066 provide an isolated output. The DAT1135 head mounted temperature converter has a voltage output. The DAT1010-OEM is a low cost temperature transmitter for RTD that can be fitted into other enclosures.
Future Sky Equipment Agency Of Datexel In Dubai.
Contact Us :
Monday, 21 December 2015
Ultrasonic transducers
Ultrasonic transducers
are transducers that convert ultrasound waves to electrical sounds or
vice versa. Those that both transmit and receive may also be called ultrasound transceivers; many ultrasound sensors besides being sensors
are indeed transceivers because they can both sense and transmit. These
devices work on a principle similar to that of transducers used in radar and sonar
systems, which evaluate attributes of a target by interpreting the
echoes from radio or sound waves, respectively. Active ultrasonic
sensors generate high-frequency sound waves and evaluate the echo which
is received back by the sensor, measuring the time interval between
sending the signal and receiving the echo to determine the distance to
an object. Passive ultrasonic sensors are basically microphones that
detect ultrasonic noise that is present under certain conditions,
convert it to an electrical signal, and report it to a computer.
Future Sky Equipment Provider Sensopart in Dubai .
Contact Us :
Monday, 14 December 2015

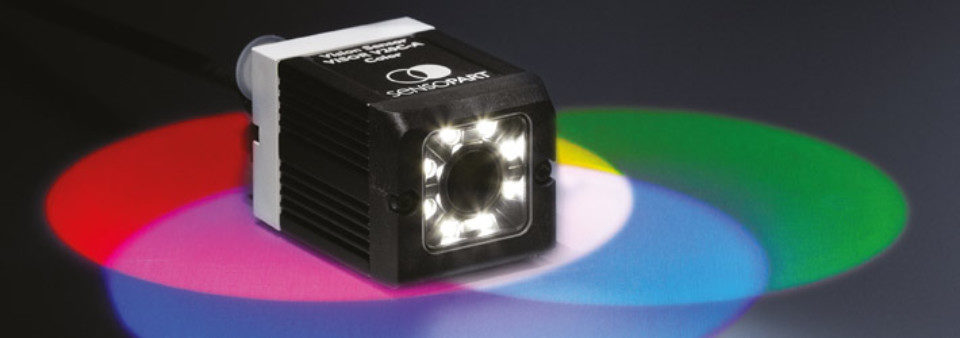

Color Sensor Sensopart
Colour and contrast differences are important features for the
detection and differentiation of objects. Sensors from SensoPart
reliably detect coloured objects, printed marks or labels during
production processes and quality assurance.
Our colour and contrast sensors are suitable for almost all relevant automation tasks thanks to their precise colour evaluation and high cycle frequency. SensoPart also offers a luminescence sensor for the detection of invisible luminescent colour marks.
Our vision colour sensors of the VISOR® Color series are particularly versatile. They offer very high colour selectivity and can also detect active (self-lighting) colours. The freely programmable Eyesight vision system offers even more comprehensive possibilities.
Sensopart is the most popular Of Color Sensor In Industry .
FutureSky Provider SensoPart In Dubai .
Contact Us :
Our colour and contrast sensors are suitable for almost all relevant automation tasks thanks to their precise colour evaluation and high cycle frequency. SensoPart also offers a luminescence sensor for the detection of invisible luminescent colour marks.
Our vision colour sensors of the VISOR® Color series are particularly versatile. They offer very high colour selectivity and can also detect active (self-lighting) colours. The freely programmable Eyesight vision system offers even more comprehensive possibilities.
Sensopart is the most popular Of Color Sensor In Industry .
FutureSky Provider SensoPart In Dubai .
Contact Us :
www.fse-automation.com
SensoPart
What our customers say about us …
“Products from SensoPart are very easy to integrate and configure.”
“SensoPart is always a good contact when tasks are tricky.”
“SensoPart has practical people.”
“We always get rapid and competent support from SensoPart.”
“SensoPart understands us and knows what we need.”
FutureSky Provider SensoPart in Dubai .
Contact Us :
www.fse-automation.com
Tuesday, 8 December 2015
Pressure Transmitter
Trafag pressure
transmitters are used for electronically measuring and evaluating
pressure. Over the decades, they have proven themselves in a multitude
of demanding applications in harsh environments. They are available in
many different designs to suit pressure and electrical connections,
measuring procedures, electrical output signals and certifications (CE,
EX, rail and ship). Superior technology and precise manufacturing ensure
that the transmitters work perfectly, especially in areas where high
requirements are placed on long-term stability, vibration resistance,
electromagnetic compatibility, shock resistance or temperature
insensitivity.Technology
Thin-film-on-steel (welded and O-ring free)or thick-film-on-ceramic pressure sensors are key components of Trafag pressure transmitters. Both sensor technologies as well as the ASIC (application-specific microchip) have been developed and produced in-house. As a result, compact pressure sensors and electronics work in perfect partnership and achieve a unique level of long-term stability and reliability even under the most adverse environmental conditions. Trafag is a technological pioneer when it comes to miniaturising robust pressure transmitters.
Thin- film - on -steel - technology
- Very good long term stability
- Resistant at high media temperatures
- Completely welded stainless steel sensor system without O-rings
- Resistant to very high over pressures and ideal for nominal pressures up to 3000 bar
Thick - film - on - ceramic - technology
- Resistant to aggressive media
- Ideal for low pressure ranges and absolute measurement
- Economical
Future Sky Equipment Provider
Different type of Pressure sensor
In Different Bars
By Hogller - Trafag - Atek Brands
www.fse-automation.com
The SME manufacturer of sensors and intelligent camera systems for factory automation SensoPart Industriesensorik wins the Automation Award from Konradin Verlag in the category „Standard Components & Sensors“. The visitors of the International Trade Fair sps ipc drives 2014 in Nuremberg ranked the vision sensor VISOR® first.
Before, a jury consisting of the congress comitee of sps ipc drives, VDMA, ZVEI and the editorial department of the trade magazin „elektro AUTOMATION“ had nominated the socalled „BLOB“ function of SensoPart’s VISOR® vision sensor together with four other products for the Automation Award. During sps ipc drives 2014 in Nuremberg, the nominated products were presented to the professional audience who then voted for their favourite.
According to Konradin Verlag, the Automation Award is the most important prize in the automation sector. It is awarded to new and innovative products in the categories „Process Control & System Solutions“ and „Standard Components & Sensors“. In December 2014, SensoPart received the prize and the certificate at the awards ceremony in Leinfelden-Echterdingen.
Monday, 7 December 2015
pressure - sensing technology
There are two basic categories of analog pressure sensors,
Force collector types These types of electronic pressure sensors generally use a force collector (such a diaphragm, piston, bourdon tube, or bellows) to measure strain (or deflection) due to applied force (pressure) over an area.
These types of electronic pressure sensors use other properties (such as density) to infer pressure of a gas, or liquid.
Force collector types These types of electronic pressure sensors generally use a force collector (such a diaphragm, piston, bourdon tube, or bellows) to measure strain (or deflection) due to applied force (pressure) over an area.
- Piezoresistive strain gauge
- Uses the piezoresistive effect of bonded or formed strain gauges to detect strain due to applied pressure, resistance increasing as pressure deforms the material. Common technology types are Silicon (Monocrystalline), Polysilicon Thin Film, Bonded Metal Foil, Thick Film, and Sputtered Thin Film. Generally, the strain gauges are connected to form a wheatstone bridge circuit to maximize the output of the sensor and to reduce sensitivity to errors. This is the most commonly employed sensing technology for general purpose pressure measurement.
- Capacitive
- Uses a diaphragm and pressure cavity to create a variable capacitor to detect strain due to applied pressure, capacitance decreasing as pressure deforms the diaphragm. Common technologies use metal, ceramic, and silicon diaphragms.
- Electromagnetic
- Measures the displacement of a diaphragm by means of changes ininductance (reluctance), LVDT, Hall Effect, or by eddy current principle.
- Piezoelectric
- Uses the piezoelectric effect in certain materials such as quartz to measure the strain upon the sensing mechanism due to pressure. This technology is commonly employed for the measurement of highly dynamic pressures.
- Optical
- Techniques include the use of the physical change of an optical fiber to detect strain due to applied pressure. A common example of this type utilizes Fiber Bragg Gratings. This technology is employed in challenging applications where the measurement may be highly remote, under high temperature, or may benefit from technologies inherently immune to electromagnetic interference. Another analogous technique utilizes an elastic film constructed in layers that can change reflected wavelengths according to the applied pressure (strain).
- Potentiometric
- Uses the motion of a wiper along a resistive mechanism to detect the strain caused by applied pressure.
These types of electronic pressure sensors use other properties (such as density) to infer pressure of a gas, or liquid.
- Resonant
- Uses the changes in resonant frequency in a sensing mechanism to measure stress, or changes in gas density, caused by applied pressure. This technology may be used in conjunction with a force collector, such as those in the category above. Alternatively, resonant technology may be employed by exposing the resonating element itself to the media, whereby the resonant frequency is dependent upon the density of the media. Sensors have been made out of vibrating wire, vibrating cylinders, quartz, and silicon MEMS. Generally, this technology is considered to provide very stable readings over time.
- Thermal
- Uses the changes in thermal conductivity of a gas due to density changes to measure pressure. A common example of this type is the Pirani guage.
- Ionization
- Measures the flow of charged gas particles (ions) which varies due to density changes to measure pressure. Common examples are the Hot and Cold Cathode gauges.
- Future sky Equipment Provider different type of Pressure Sensor in
- Hugller , Trafag , Attek Brands
- www.fse-automation.com
